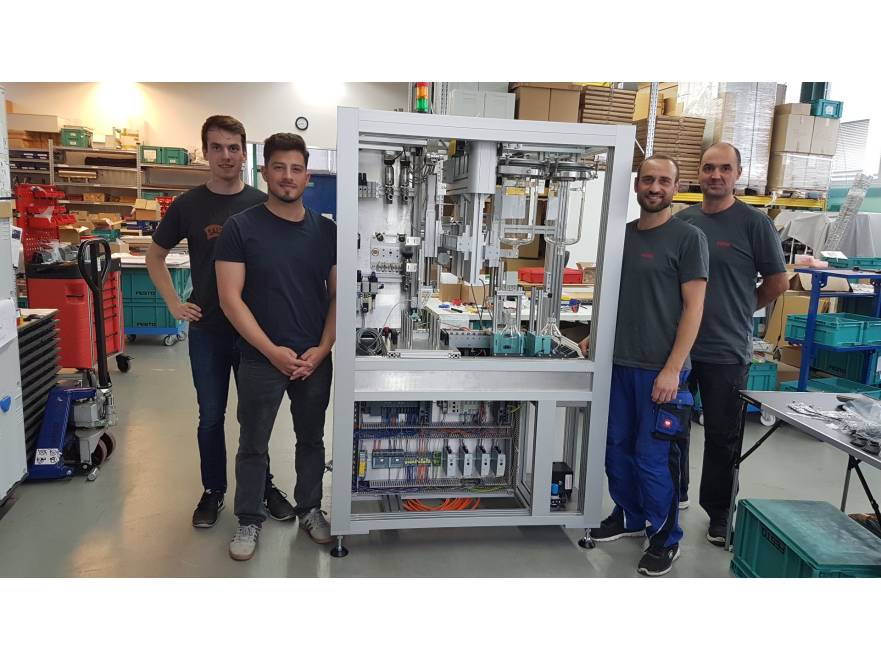

Liquid handling system for microtiter plates
Highlights
- Dosing X/Z handling system with electric servo axes incl. 8-fold dosing head with individual valve control
- Liquid laboratory glass bottles 2 x 500 ml as dosing templates with piezo-pneumatic pump system
- Glass storage tanks 2 x 5 l with ultrasonic fill level monitoring and angle seat valves with pneumatic drives in the inlet
- Cleaning mode for the dosing heads with pneumatic diaphragm pump for waste removal
- Microtiter plate X/Z handling system with electric servo axes, pneumatic gripper incl. laser sensor for object detection
- Festo Multi-Carrier-System - MCS® for microtiter plate positioning with Siemens Simotion control
- Interchangeable magazine for 3 stacks of 10 titer plates, as a drawer system for convenient loading and unloading
- Backbone Smart Connectors for electrical supply, IT and liquid
- Pneumatic pressure monitoring
- Elegant machine frame and safety doors made of high-quality aluminum profiles, closed outer sides, very easy to clean
- Siemens SIMOTION for MCS control
- ProfiNet communication between Festo and Siemens control systems
- Siemens Safety PLC functions for emergency stop and protective housing
