FluidLab-PA multi-loop
Multivariable control
In conjunction with the EasyPort interface, the FluidLab-PA Multi-Loop software enables the control of four types of process variables such as level, flow rate, pressure or temperature.
Details
Overview

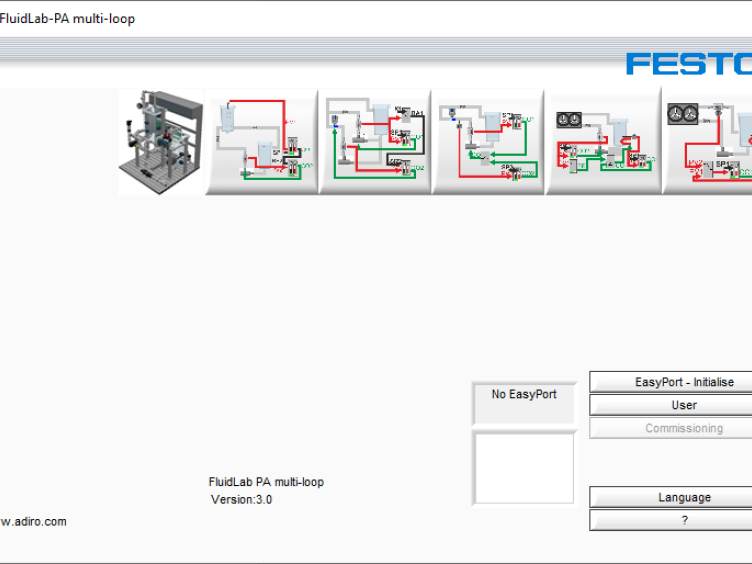

The main screen of FluidLab-PA Multi-Loop provides a quick overview of the process and easy configuration of the PID parameters.
Control strategies
The following control strategies can be implemented with the software:

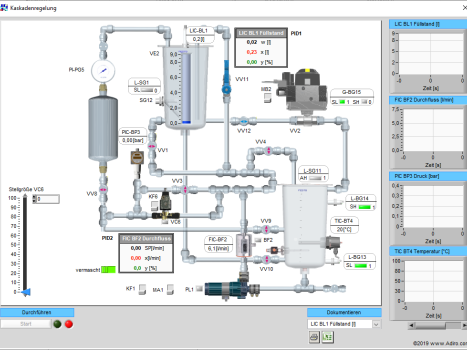

- PID cascade control.
- Level and flow control loops with disturbance variable forwarding for one constant actuator.

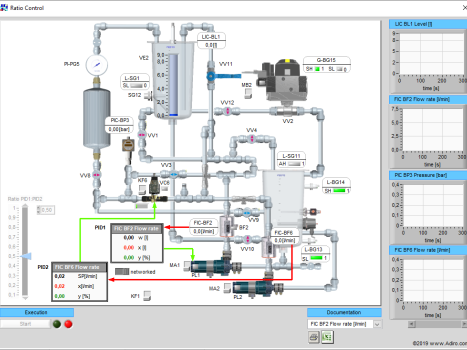

- PID ratio controller for two flow control loops and one constant actuator.
- PID limiting controller for flow and pressure control loops and constant actuator.
- PID controller with feedforward control for pressure control with flow disturbance variable via a proportional valve.
- PID controller with feedforward control for temperature control with non-constant heating/cooling actuator.
- PID selector controller for temperature control with non-constant heating actuator.
Implementation
Various hardware variants with additional components are required to carry out the tests
Further information
Downloads
Softwareversion:
Additional software tools:
These additional software tools are required to use the software to its full extent. Always download the latest version from the manufacturer's website.
License activation:
You can also simply activate the licenses via the Didactic WebDepot(https://cm.festo-didactic.com/). Please note that the certificate activation involves virtual containers. You will receive your license by e-mail or in paper form with a ticket number when you order the software.
Published versions
Version 3.0.0
- New license management system
Software version 1-2
There is no active download available for these versions. If you still require this product version, please contact us directly by e-mail with details of the software version and license name.
