Different applications, one interface
Whether real or simulated system - you can switch seamlessly between the two with a simple click. Whether you control the system directly via the switching elements or program independent sequences via the Festo Didactic EzOPC interface, both are easy to implement thanks to intuitive menu navigation.

Operating concept

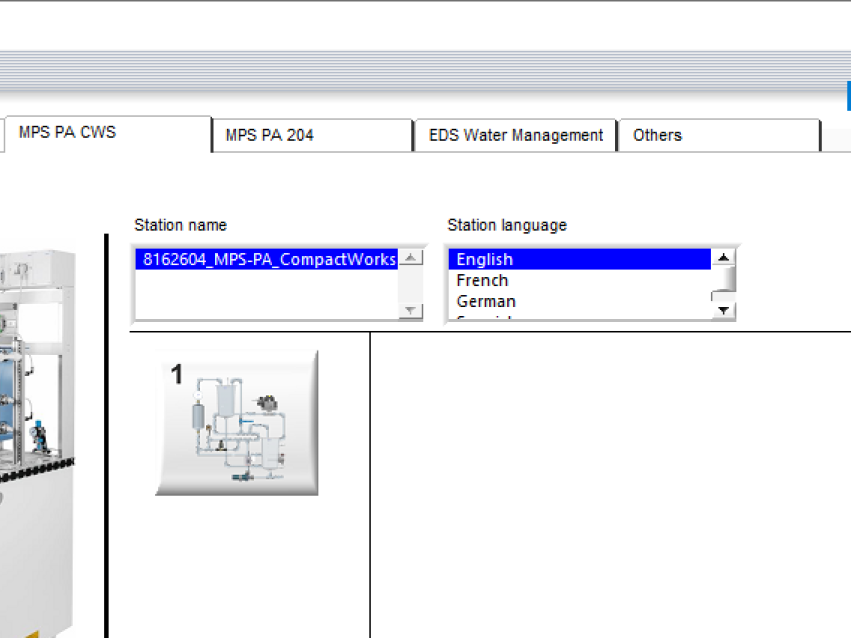

A uniform and consistent operating concept applies to all systems, regardless of whether you are managing the EduKit PA, the MPS PA Compact Workstation, MPS PA 204 Mixing or, for example, the EDS Water Management Sand Filtration. The station scheme makes it easier to choose between the simulated and real systems that are addressed via the EasyPort. The integration of the real components into the station diagram enables a quick reference to the real system.

Switching states

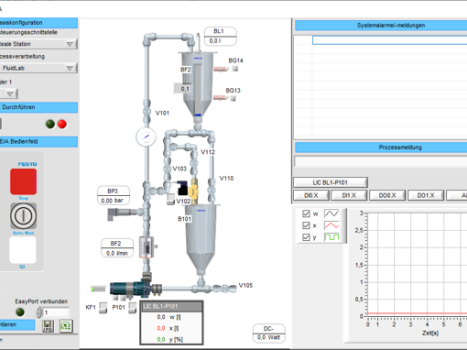

The switching states are not only shown in the station diagram, but also displayed and recorded in curve diagrams.

Programming
To create your own PLC program or describe Grafcet sequences, the EzOPC interface allows you to control both simulations and the real system using FluidSIM, the CoDeSys simulation mode and the PLCSIM Advanced software.

Supplementary topics

• Filling process with the IoT kit extension package.
• Direct storage of simple and fixed programmed sequences directly from the software.
• Integration of hidden errors in signal states.

Realized systems:

• EduKit PA,
• MPS PA Compact Workstation,
• MPS PA 204 with mixing and filtering;
• EDS Water Management System (water supply, sand filtration, membrane filtration).
• Further stations will be introduced through updates/upgrades and can be accessed via the Internet.
